San Diego Battery Installation
Renon Battery Storage With Sol-Ark System Design
SHS Power designs and installs residential Renon battery systems for San Diego homeowners who want backup power, solar storage, and smarter control over SDG&E peak rates.
We handle the full confirmed pairing: Renon battery selection, Sol-Ark inverter design, permits, electrical installation, commissioning, monitoring, and programming.
Why This Pairing
Battery capacity is only part of the system.
A Renon battery stores the energy. The Sol-Ark-based design determines how that energy moves between solar, the home, the grid, and backup loads.
That is where installation quality matters: communication settings, backup reserve, grid charging, time-of-use schedules, export behavior, monitoring, and load-panel design all affect real-world performance.
Ask SHS Power to size your systemA proper residential battery design should answer:
SHS Power in Action
Battery equipment matters. The installer matters more.
See how SHS Power approaches solar, storage, electrical work, and project execution for San Diego homes and businesses.
Talk With Our TeamRenon Residential Batteries
Two battery paths for San Diego homes
Renon offers residential battery options that can support different storage goals, from compact high-capacity backup to modular systems that scale with future needs.

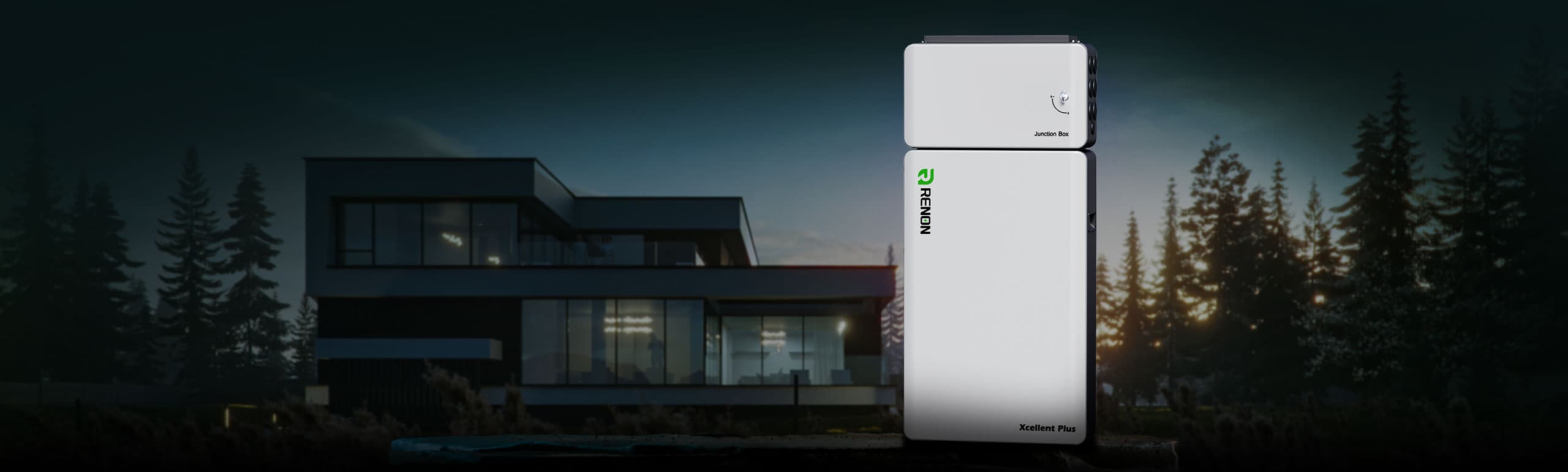

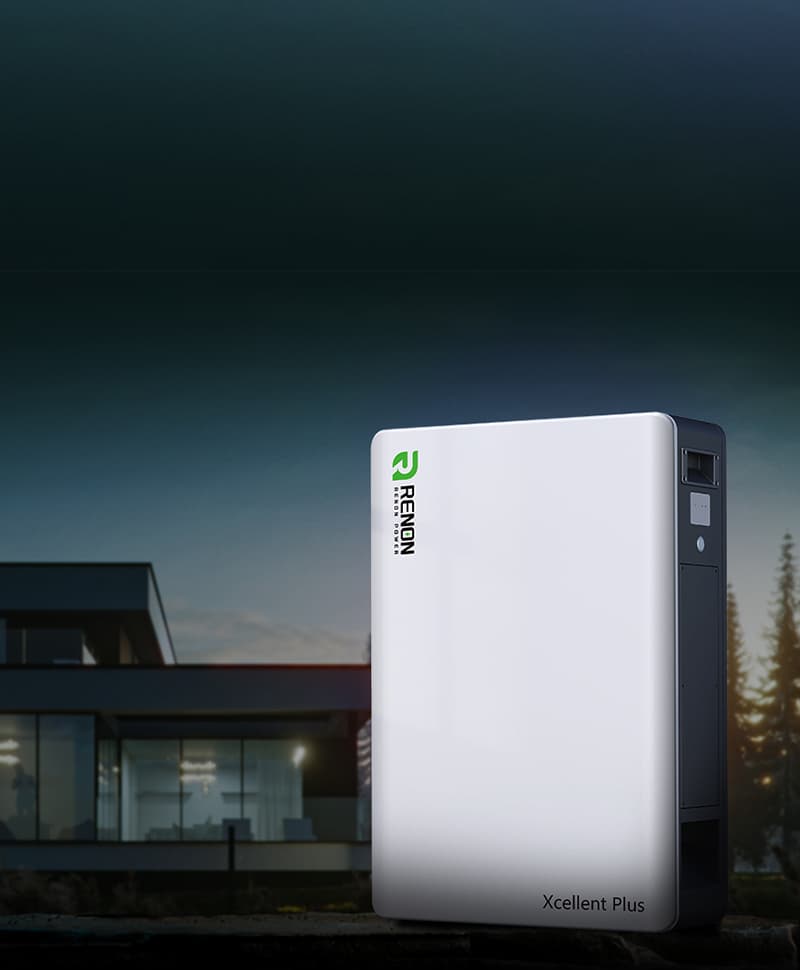

Compact high-capacity wall battery
Renon Xcellent Plus
A strong fit when a home needs a clean, space-efficient battery with meaningful storage capacity in a single cabinet.
- 200 A max operation current
- Approx. 22 x 8.3 x 34.6 in
- Approx. 351 lb
- UL9540, UL9540A, UL1973, UN38.3
Modular low-voltage battery system
Renon Xtreme LV
A flexible option when the design needs to scale from starter backup to larger storage capacity over time.
- 2 to 8 module configurations
- 8000+ cycle positioning from Renon
- 10-year warranty positioning from Renon
- UL1973, UL9540, UL9540A, UN38.3 and additional certifications
Product specifications are based on Renon published residential battery pages. Final equipment selection is based on current datasheets, inventory, code requirements, load calculations, and the Sol-Ark configuration for the home.
Installed Systems

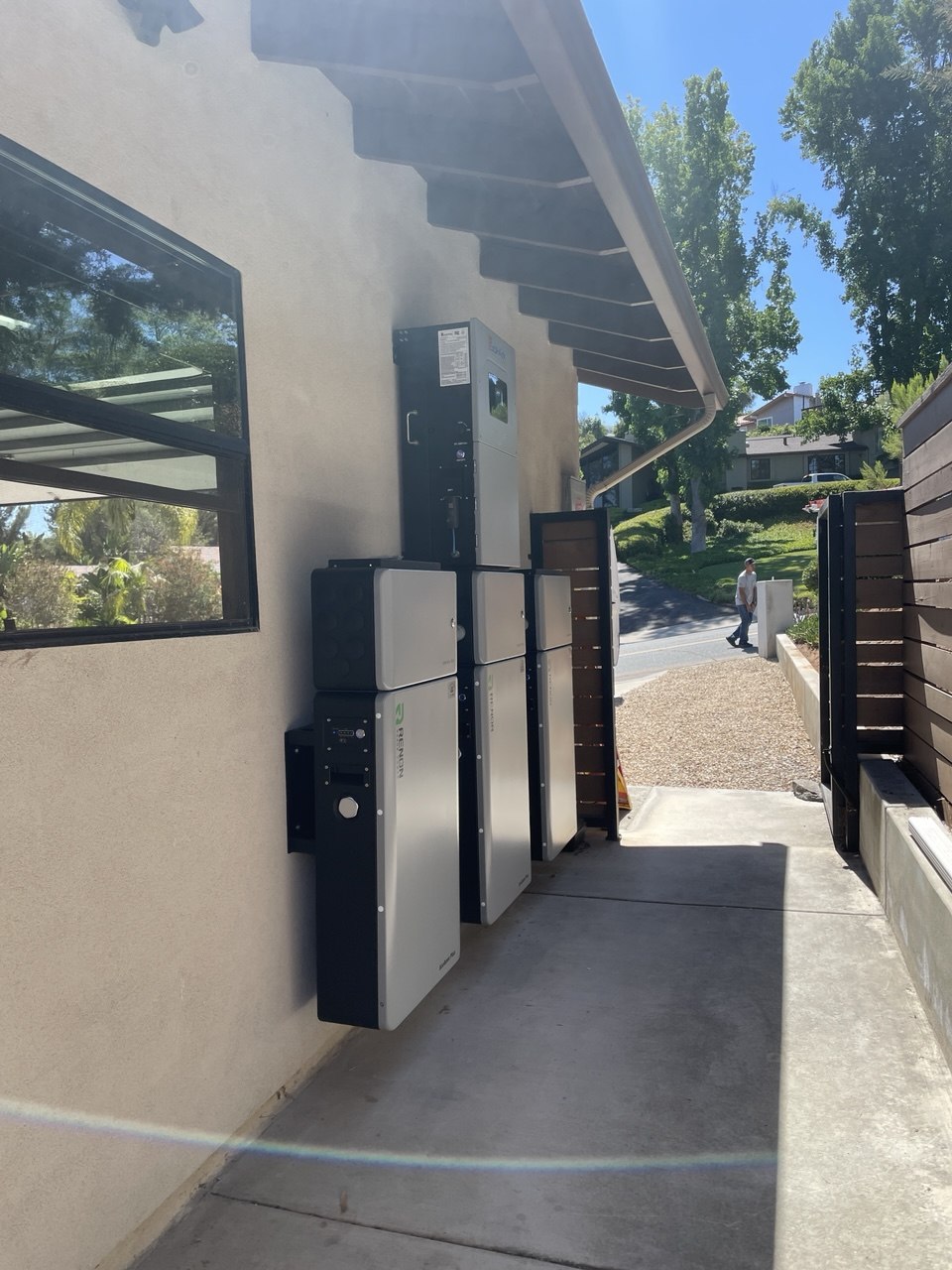

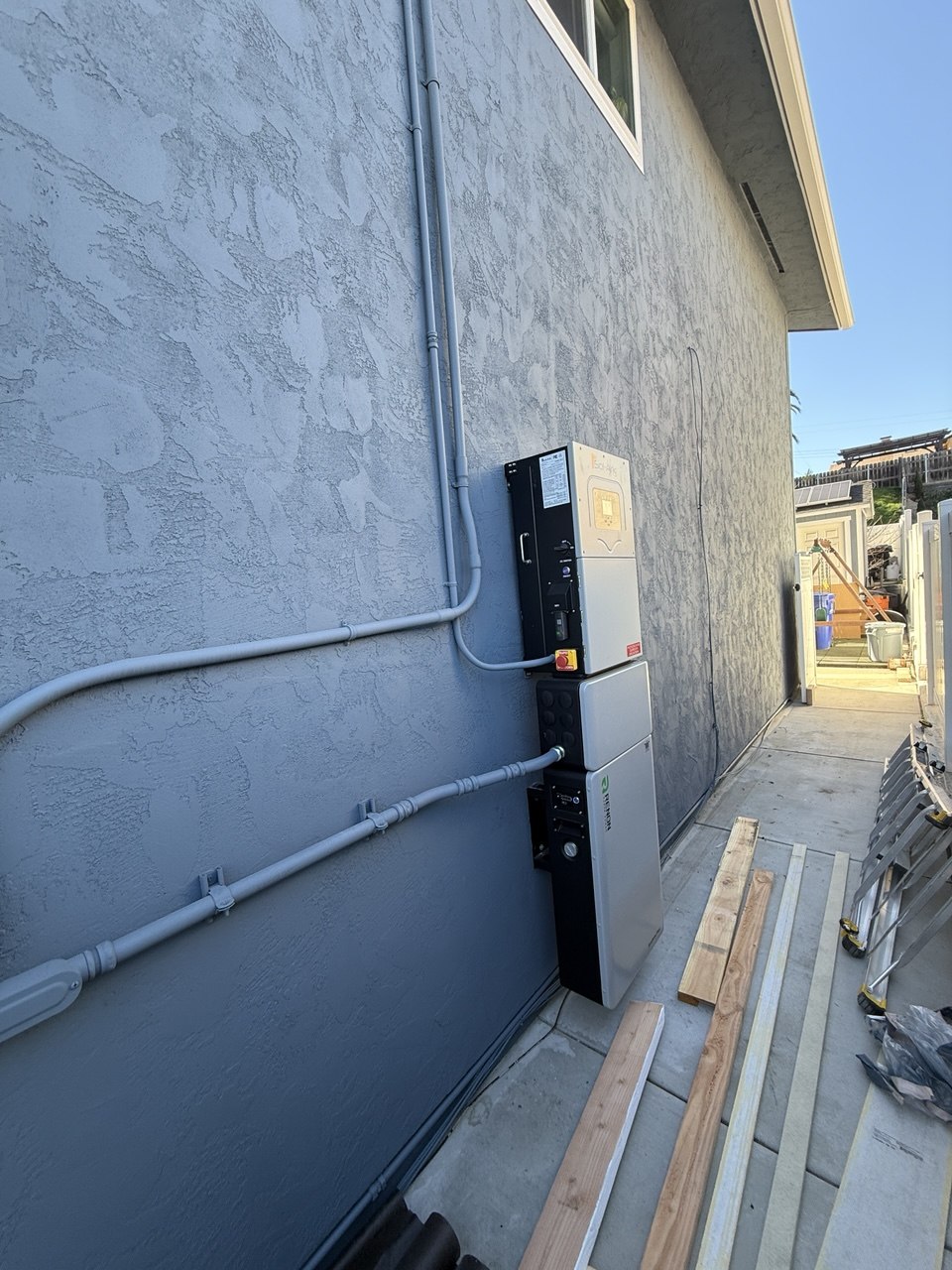

Real Renon and Sol-Ark battery installs.
The system layout matters: inverter location, battery spacing, conduit, junction boxes, service clearances, and commissioning all affect the final installation.

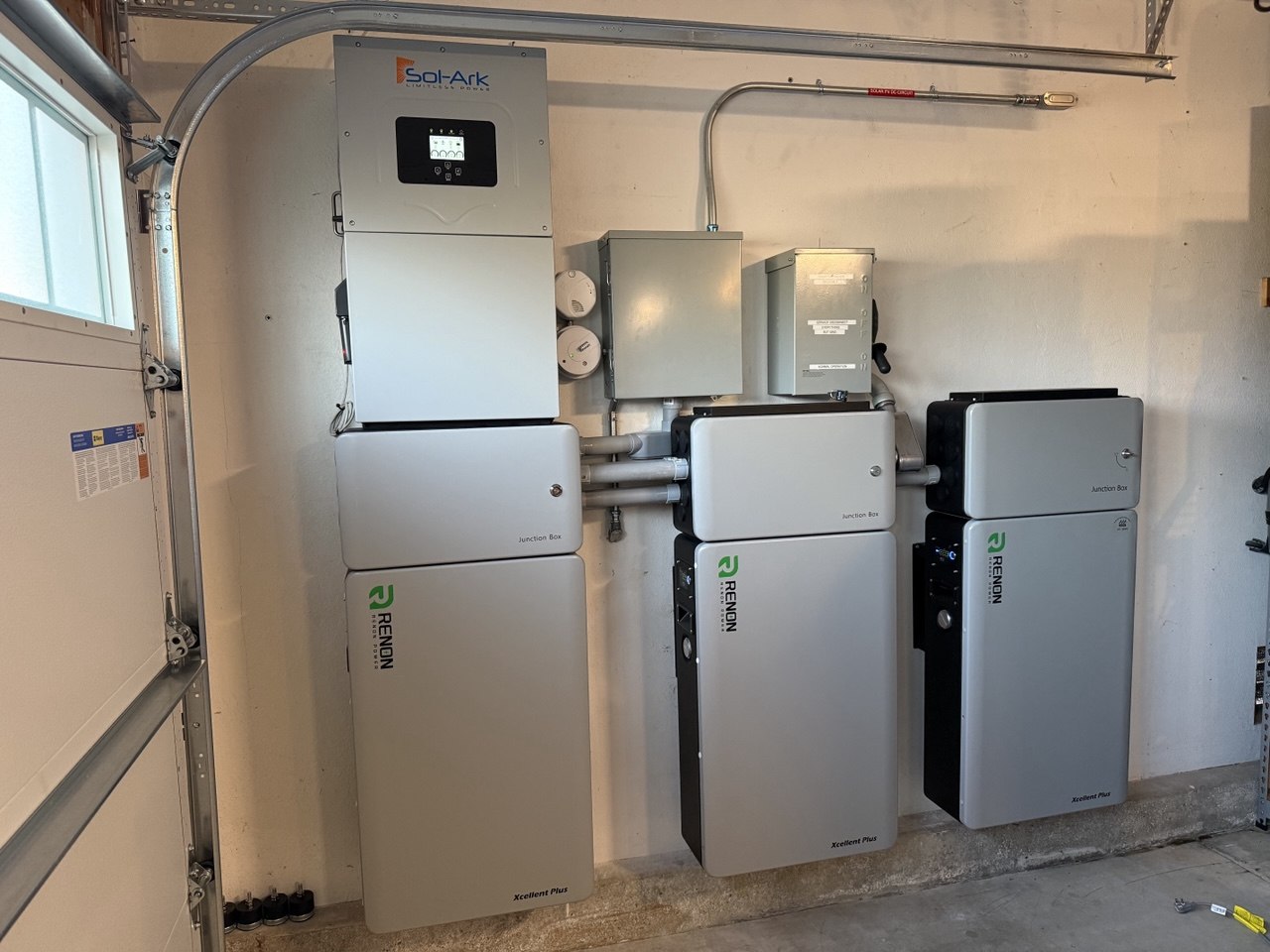

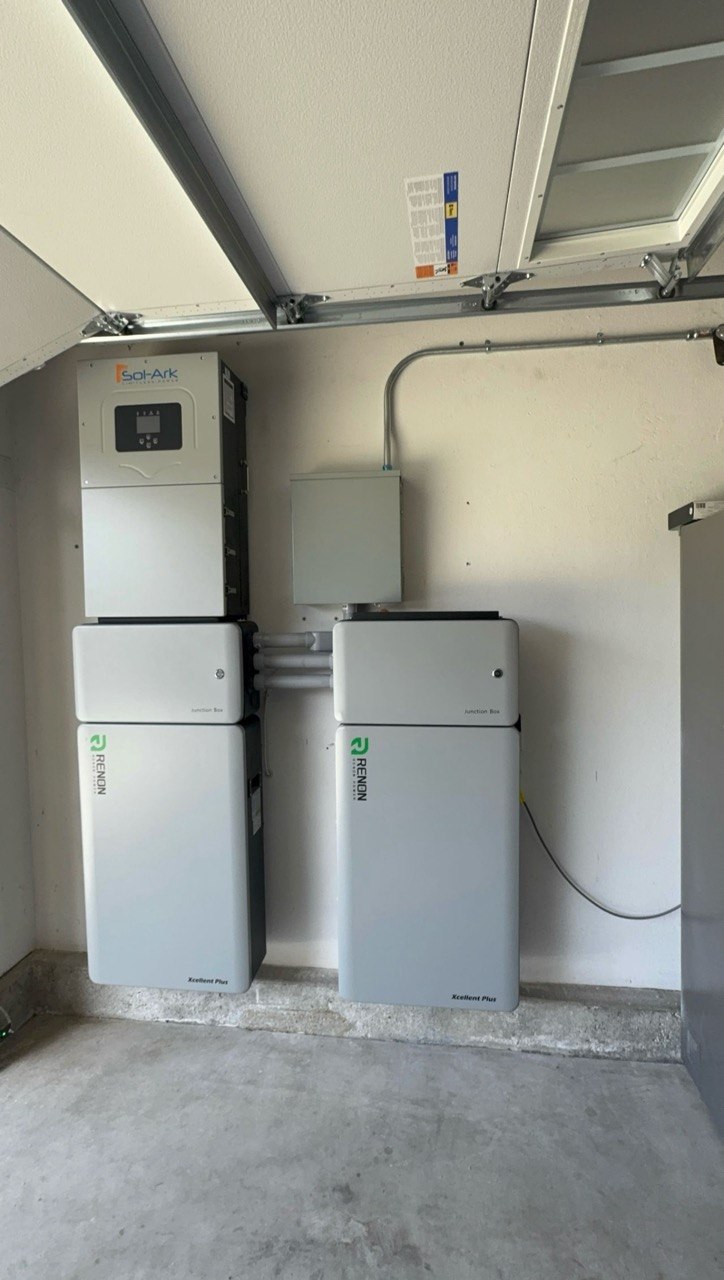

Renon Xcellent Plus battery storage installed with Sol-Ark system equipment.
Renon Product Platform
Real residential battery hardware, not a generic backup promise.
Renon's residential lineup gives SHS Power practical options for compact storage, modular expansion, and Sol-Ark-based system control.
The right system still comes down to load planning, installation quality, and programming. That is where SHS Power turns the equipment into a working backup and savings strategy.
Use Cases
Built around how you use power
A battery system should not be sold by cabinet count alone. We size and program around the actual job it needs to do.
Partial-home backup
Protect refrigerators, lights, outlets, internet, garage doors, and other critical circuits.
Whole-home resilience
Evaluate larger battery banks for broader backup coverage, including larger loads where practical.
Solar self-consumption
Store daytime solar production and use it in the evening instead of exporting low-value energy.
Peak-rate avoidance
Program the system to reduce grid draw during the most expensive SDG&E time-of-use windows.
SHS Power Process
From sizing to commissioning
Our job is to make the battery, inverter, solar, utility settings, and backed-up loads work as one system.
Load and Rate Review
We review your SDG&E usage, solar production, backup priorities, service panel, and critical loads before recommending a battery size.
Sol-Ark System Design
We design the inverter, battery, gateway, load panel, breaker, conduit, and monitoring layout so the system is code-compliant and serviceable.
Permits and Installation
SHS Power handles plan sets, permitting, equipment mounting, electrical work, inspection support, and commissioning.
Programming and Support
We configure backup reserve, time-of-use behavior, solar charging, export settings, and monitoring for how the home actually uses power.
Renon and Sol-Ark Battery FAQs
Can Renon batteries work with Sol-Ark inverters?
Yes. SHS Power designs Renon residential battery systems with Sol-Ark hybrid inverters for San Diego homes. We configure the battery communication, inverter settings, backup reserve, monitoring, and operating mode so the system works as a complete solar and storage platform.
Is this for new solar, existing solar, or battery-only projects?
All three. A Renon and Sol-Ark design can be used for a new solar-plus-storage project, a battery retrofit for an existing solar customer, or a battery-only backup design that charges from the grid.
Which Renon battery is better for my home?
Xcellent Plus is attractive when a compact 16 kWh battery cabinet fits the job. Xtreme LV is attractive when modular scaling is important. The better choice depends on loads, backup goals, available wall space, budget, and Sol-Ark configuration.
Will the system lower my SDG&E bill?
It can help when it is programmed correctly. Battery savings depend on your rate plan, solar production, household usage, battery size, and how aggressively the system discharges during peak hours.
Planning a Renon or Sol-Ark battery project?
Send us your utility bill, solar details, panel photos, and backup goals. We will size a Renon and Sol-Ark battery design around your home.
